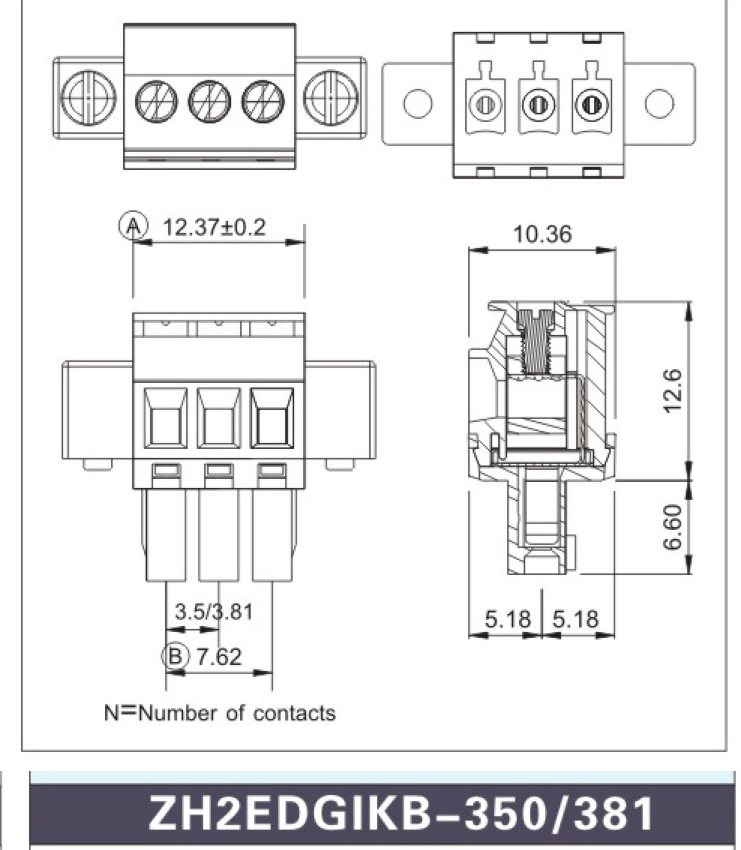

ZH2EDGIKB-350/381
| ZH2EDGIKB-350/381 Pitch：350/381MM | ||
| Part | Material | Plated |
| Frame: | PA66 UL94V-0 | － |
| Wire guard: | Phosphor bronze | Ni |
| Screw: | M2.0Steel | Ni |
| Clamp: | Brass | Ni |
| Electrical | ||
| Voltage: | 300V | |
| Current: | 10A | |
| Wire size: | 16-28AWG | |
| Poles: | 2-24P | |
| Insulation Reslistance: | 5000MΩ/1000V | |
| Withstand Voltage: | AC2000V/1Min | |
| Mechanical | ||
| Acceptable Temperation: | -33℃~+120℃ | |
| Max Soldering: | +250℃,5Sec | |
| Strip Length: | 7.0-8.0mm | |
