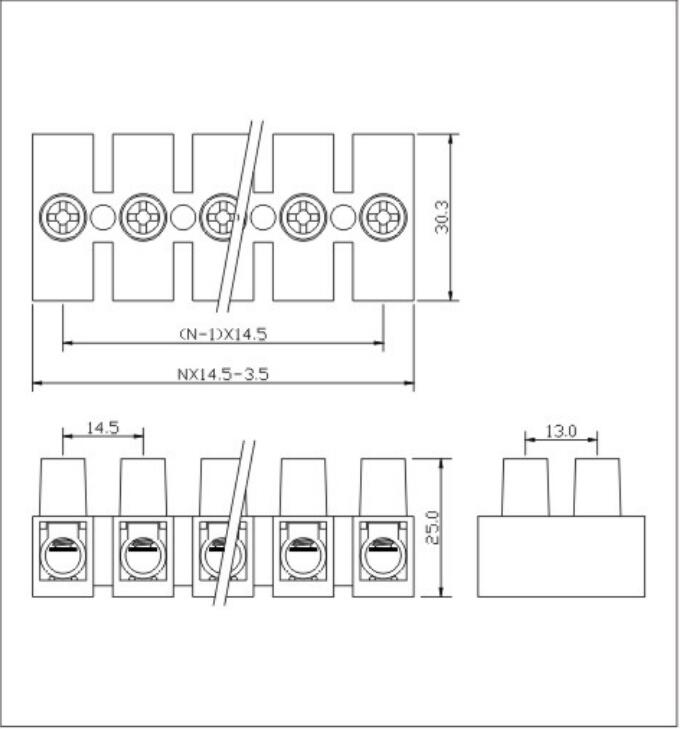

ZH641-1450
| ZH641-1450 Pitch：14.5MM | ||
| Part | Material | Plated |
| Frame: | PA66 UL94V-0 | － |
| Wireprotector: | Brass | Ni |
| Screw: | M3.0 Steel | Ni |
| Clamp: | Brass | Ni |
| Electrical | ||
| Voltage: | 750V | |
| Current: | 57A | |
| Wire size: | 12-22AWG | |
| Poles: | 2-12P | |
| Insulation Reslistance: | 5000MΩ/1000V | |
| Withstand Voltage: | AC2000V/1Min | |
| Mechanical | ||
| Acceptable Temperation: | -33℃~+120℃ | |
| Max Soldering: | +250℃,5Sec | |
| Strip Length: | - | |
