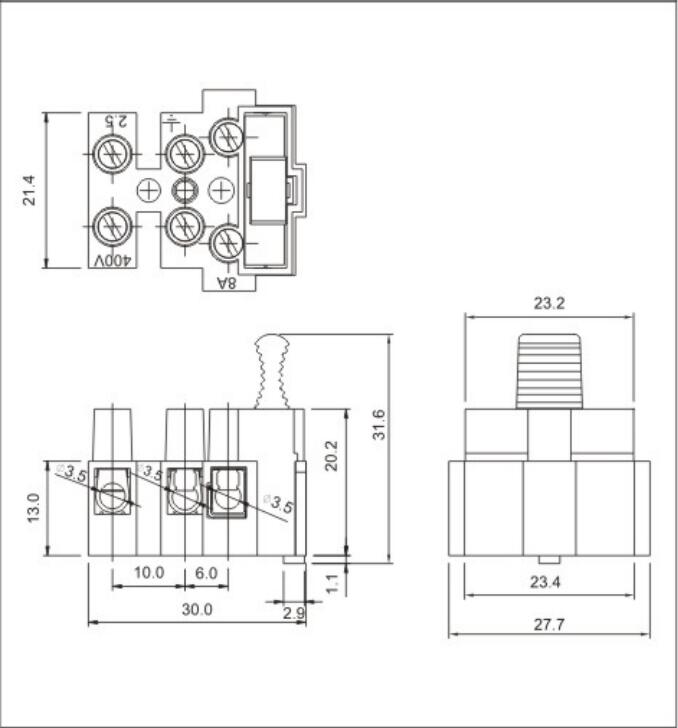

ZH510
| ZH510 Pitch：10.0MM | ||
| Part | Material | Plated |
| Frame: | PA66 UL94V-0 | － |
| Wireprotector: | Stainless Steel | － |
| Screw: | M3.0 Steel | Ni |
| Clamp: | Steel | Ni |
| Electrical | ||
| Voltage: | 450V | |
| Current: | 10A | |
| Wire size: | 14-22AWG | |
| Poles: | 1-5P | |
| Insulation Reslistance: | 5000MΩ/1000V | |
| Withstand Voltage: | AC2000V/1Min | |
| Mechanical | ||
| Acceptable Temperation: | -33℃~+120℃ | |
| Max Soldering: | +250℃,5Sec | |
| Strip Length: | 6.0-7.0mm | |
