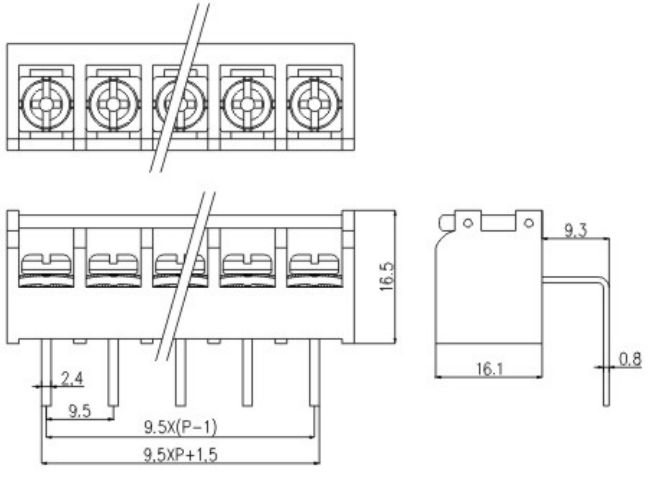

ZH48GF-950
| ZH48GF-950 Pitch：9.5MM | ||
| Part | Material | Plated |
| Frame: | PA66 UL94V-0 | － |
| Contact: | Brass | Tin |
| Screw: | M4.0Steel | Ni |
| Cover: | PC | － |
| Electrical | ||
| Voltage: | 300V | |
| Current: | 20A | |
| Wire size: | 12-22AWG | |
| Poles: | 2-20P | |
| Insulation Reslistance: | 5000MΩ/1000V | |
| Withstand Voltage: | AC2000V/1Min | |
| Mechanical | ||
| Acceptable Temperation: | -40℃~+105℃ | |
| Max Soldering: | +250℃,5Sec | |
