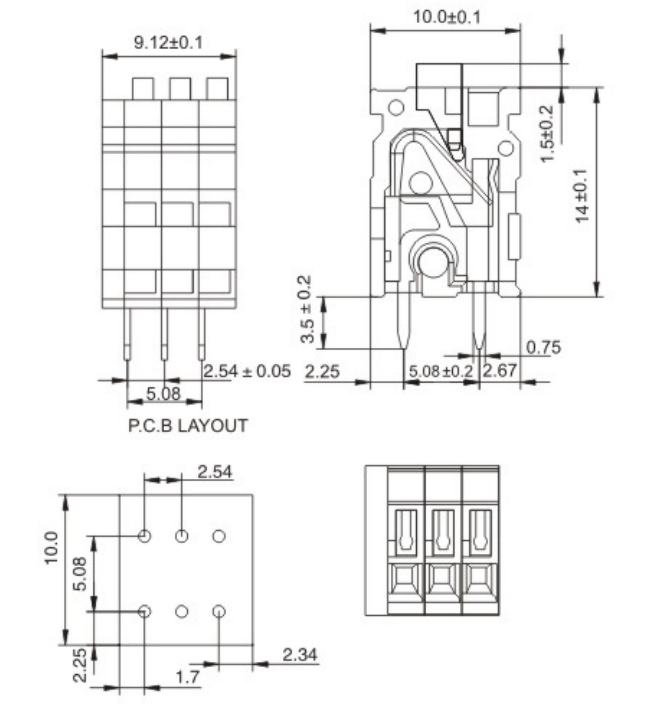

ZHWRV-254
| ZHWRV-254 Pitch：2.54MM | ||
| Part | Material | Plated |
| Frame: | PA66 UL94V-0 | － |
| Contact: | Brass | Tin |
| Wireprotector: | Stainless Steel | - |
| Electrical | ||
| Voltage: | 150V | |
| Current: | 2A | |
| Wire size: | 20-26AWG | |
| Poles: | 2-30P | |
| Insulation Reslistance: | 5000MΩ/1000V | |
| Withstand Voltage: | AC2000V/1Min | |
| Mechanical | ||
| Acceptable Temperation: | -33℃~+120℃ | |
| Max Soldering: | +250℃,5Sec | |
| Strip Length: | 8.0-9.0mm | |
