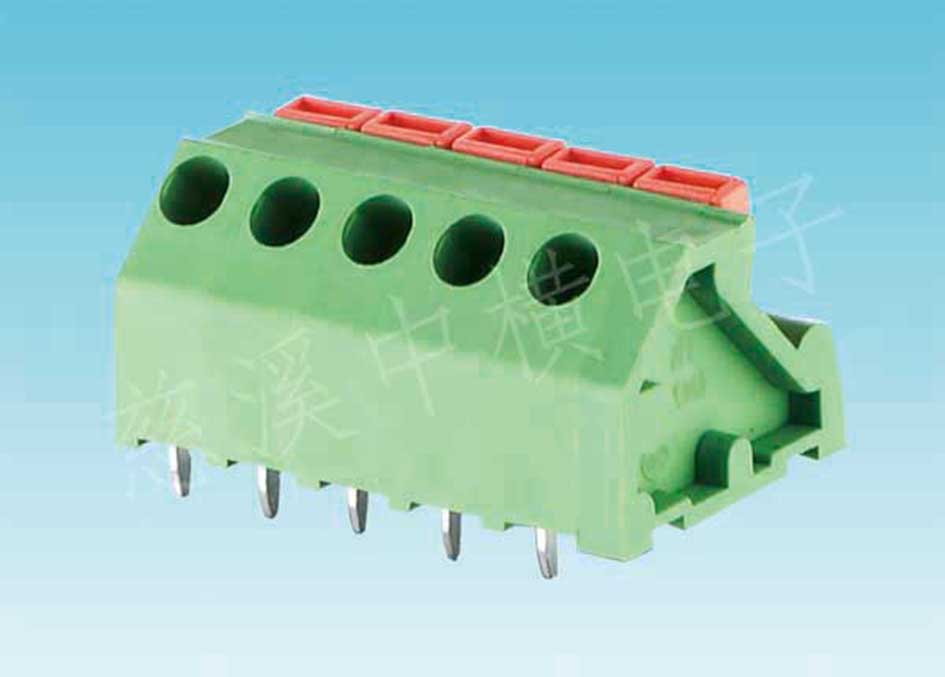

ZH142-500/750
| ZH145-500/750 Pitch：500/750MM | ||
| Part | Material | Plated |
| Frame: | PA66 UL94V-0 | － |
| Contact: | Brass | Tin |
| Wireprotector: | Stainless Steel | - |
| Electrical | ||
| Voltage: | 300V | |
| Current: | 15A | |
| Wire size: | 12-22AWG | |
| Poles: | 2-30P | |
| Insulation Reslistance: | 5000MΩ/1000V | |
| Withstand Voltage: | AC2000V/1Min | |
| Mechanical | ||
| Acceptable Temperation: | -33℃~+120℃ | |
| Max Soldering: | +250℃,5Sec | |
| Strip Length: | 9.0-10.0mm | |
