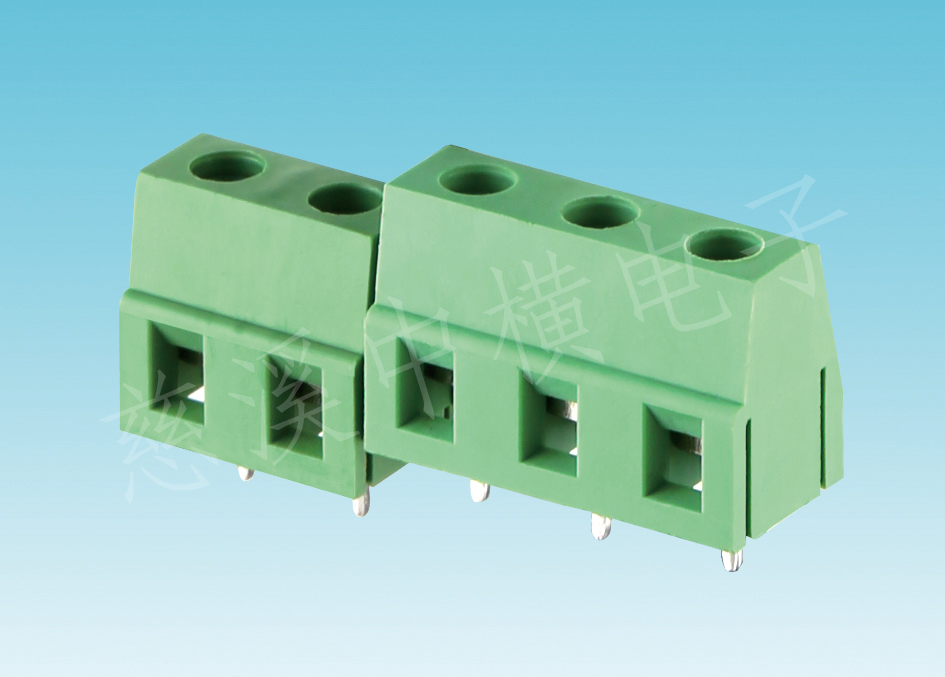

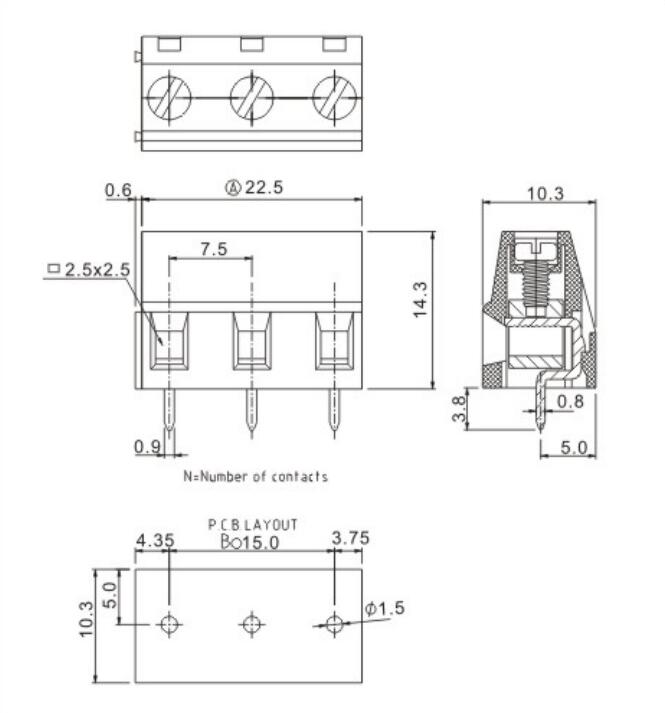

ZH128-750
| ZH128-750 Pitch：750MM | ||
| Part | Material | Plated |
| Frame： | PA66 UL94V-0 | － |
| Contact： | Brass | Tin |
| Screw： | M2.5Steel | Ni |
| Clamp： | Brass | Ni |
| Electrical | ||
| Voltage： | 300V | |
| Current： | 15A | |
| Wire size： | 12-22AWG | |
| Poles： | 2-30P | |
| Insulation Reslistance： | 5000MΩ/1000V | |
| Withstand Voltage： | AC2000V/1Min | |
| Mechanical | ||
| Acceptable Temperation： | -33℃~+120℃ | |
| Max Soldering： | +250℃,5Sec | |
| Strip Length： | 6.0-7.0mm | |
